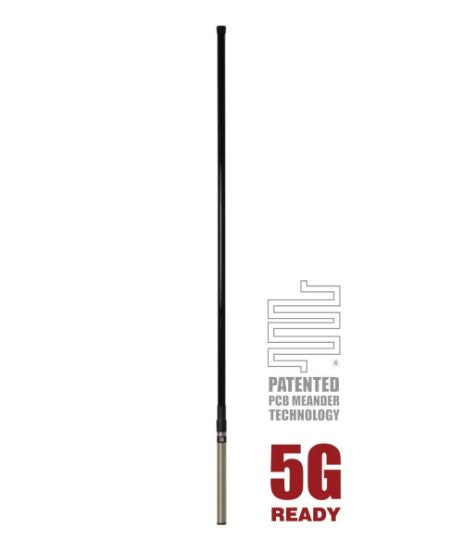

The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when the signal is poor.

The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.

The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.

Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Height [mm]	965
Brand	RFI
IP Rating	IP65
Operating Temperature Range [°C]	-45 to +85
Frequency MHz	698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Horizontal Beamwidth	Omni-directional
Vertical Beamwidth	25 / 30 / 20 / 15
Tuned Bandwidth	Full
Construction	Black radome, 200 x 19mm stainless steel mounting tube
Mounting Area	200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied)
Radome Diameter Mm	15.6
VSWR	<2.5:1
Polarisation	Vertical
Nominal Gain [dBi]	6.5 / 4.5 / 5.5 / 6.5
Power [W]	10
Wind Gust Rating KMH	240
Frequency Range [MHz]	1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Cable And Connector	10m of RG58 (9006) low loss cable terminated with SMA male connector
Packaging	Retail Hang Sell Pack
Colour	Black, Silver
Technology Type	5GNR, LTE
Antenna Type	Omni
Antenna Application	Base Station Antenna
Cable Length (M)	10
Antenna Configuration	SISO
