Designed for caravans, RV's and other mobile applications. The Axis BT series are 12/24V LED TV's that support a wide choice of media inputs, which allows enjoyment of movies, music, photos and more via DVD, CD, USB or an external source unit. Users are able to control live TV via the PVR & Timeshift functions. The Axis BT series are also built to resist moicture and handle vibrations experienced when on the move. PANEL – Display Size: 32” (81cm) – Resolution: 1366 x 768 – – Brightness: 250cd/m2 – – Contrast: 1200:1 – Viewing Angle: 178(H) x 178(V)
POWER – Input: 9-36V DC / 4A @12V – Optional AC Adapter: 240V 50Hz/60Hz – Stand-by Power Consumption: 0.5W
CABINET – Conformal Coated Circuit Board – Size: 731.1 x 85.7 x 432mm – 100 x 200 VESA Mounting – Net weight: 5.1 kg
MULTIMEDIA & FEATURES – TIMESHIFT: Pause, Rewind & Fast-Forward Live TV (using PVR) – USB Reader – PVR (Personal Video Recorder) – EPG (Electronic Program Guide)
DVD/CD PLAYER – Built-In DVD Player – Supports DVD/VCD/CD/MP3/DIVX/JPEG – Supports DVD±R/DVD±RW/CD-R/RW
TUNER – DVB-T Digital HD Tuner – Analogue Tuner – DTV Video System: MPEG-1MP@ML, H.264, MPEG-4 (Video Codes) – DTV Sound System: MPEG-1 Layer 1/2 – ATV Video System: PAL – ATV Sound System: BG, DK, I
SYSTEM – MPEG-4 Video System – OSD: Multi-languages – Number of Channels: 99 – Comb Filter: 3D – Teletext: ATV/1000 Pages – Speakers: 2 x 8W Stereo

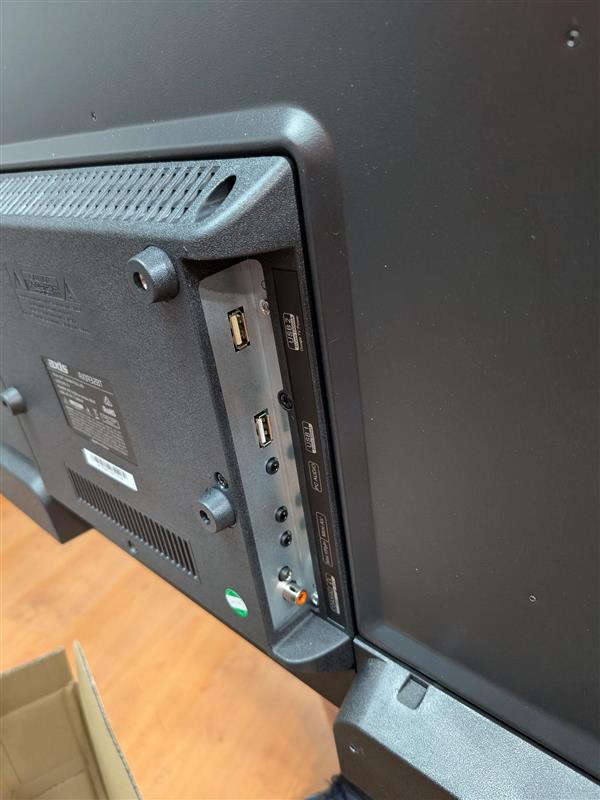

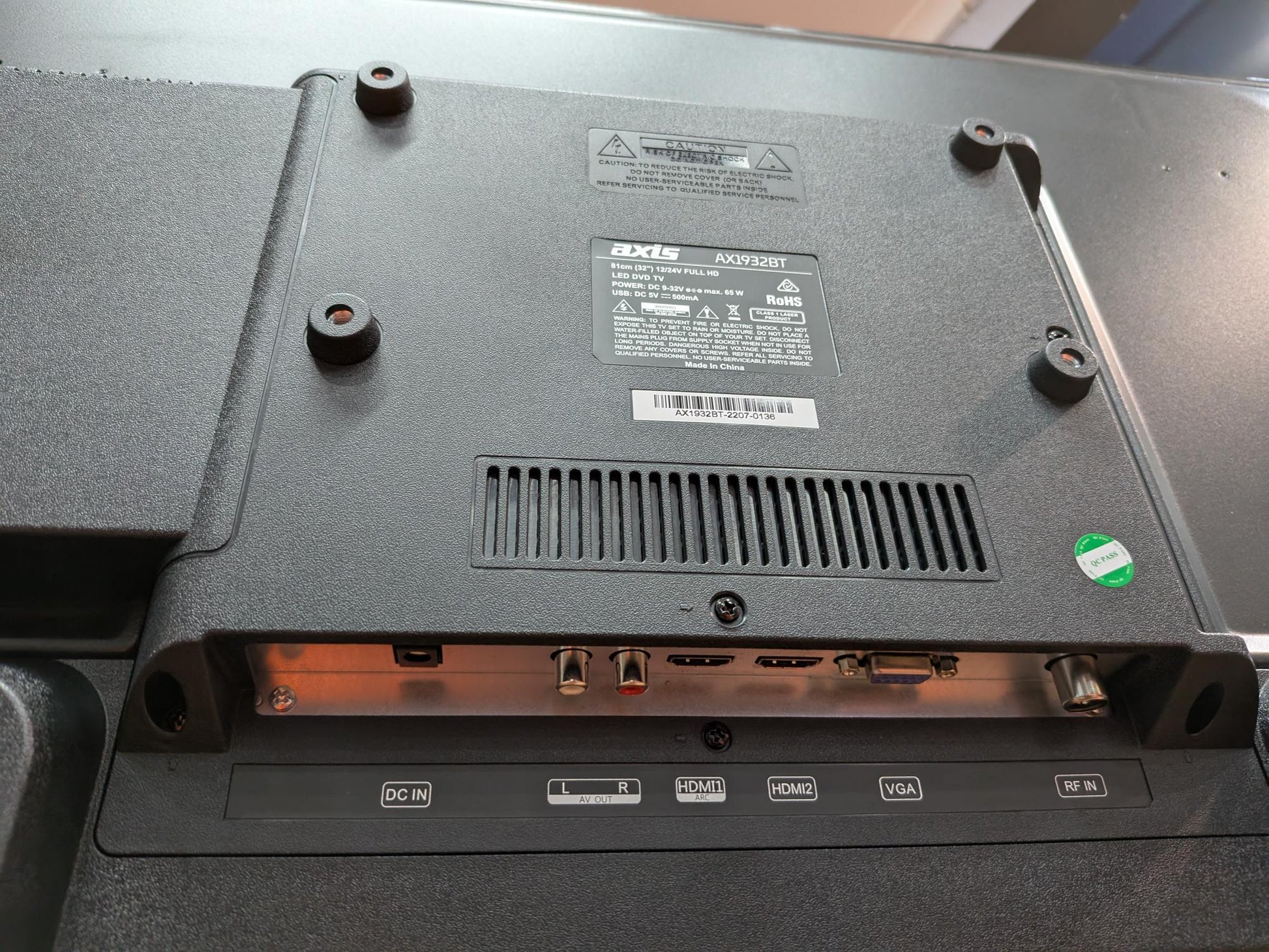

INPUTS – RF/Antenna: 1 – HDMI: 2 – USB: 1 x Media, 1 x Power Output – Mini YPbPr: 1 – Mini AV: 1 – VGA: 1 – PC Audio: 1
OUTPUTS – Bluetooth Audio Transmitter – Headphone: 1 (3.5mm) – Digital Coaxial: 1 – Line Out: 1
INCLUDED – Remote Control – Cig. Power Adaptor Lead – Desk Mount Stands – Wall Mounted Screws – Mini YPbPr Lead – Mini AV Adaptor
❖Specifications
BrandAxis ModelAX1932BT Shipping Weight5.4kg Shipping Dimensions (mm)820 x 510 x 130 Warranty2 year
