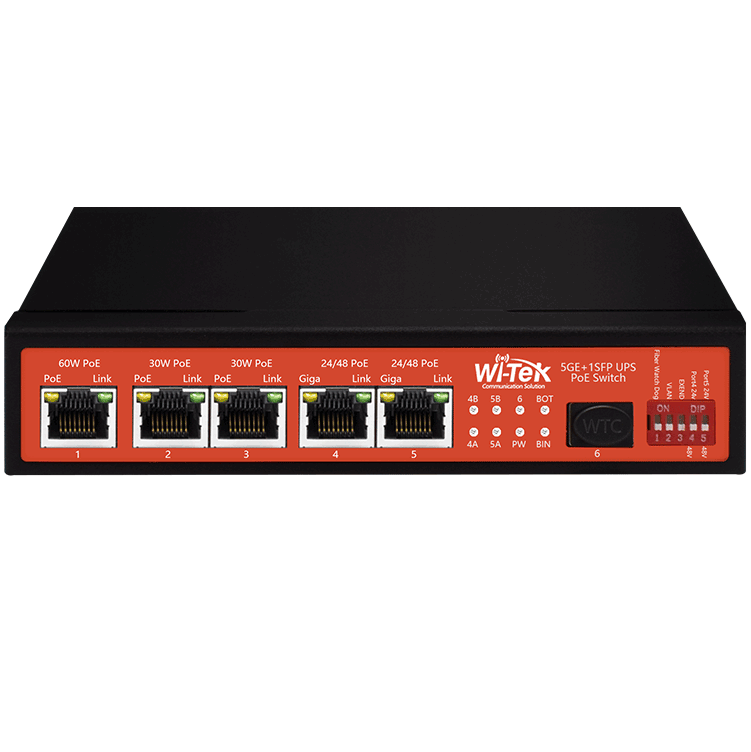

24-48V Solar UPS PoE Switch | 15A

• One (1) 802.3af/at/bt 60W PoE Port
• Two (2) 802.3af/at 30W PoE Ports
• Two (2) 24/48 V selectable PoE Ports
• One (1) SFP Port.

You connect:

• [required] 12 or 24 V Battery (not included. Lead-acid, or Lithium LiFePO4 with BMS)
• [optional] Solar panels (not included), or DC Input (not included)

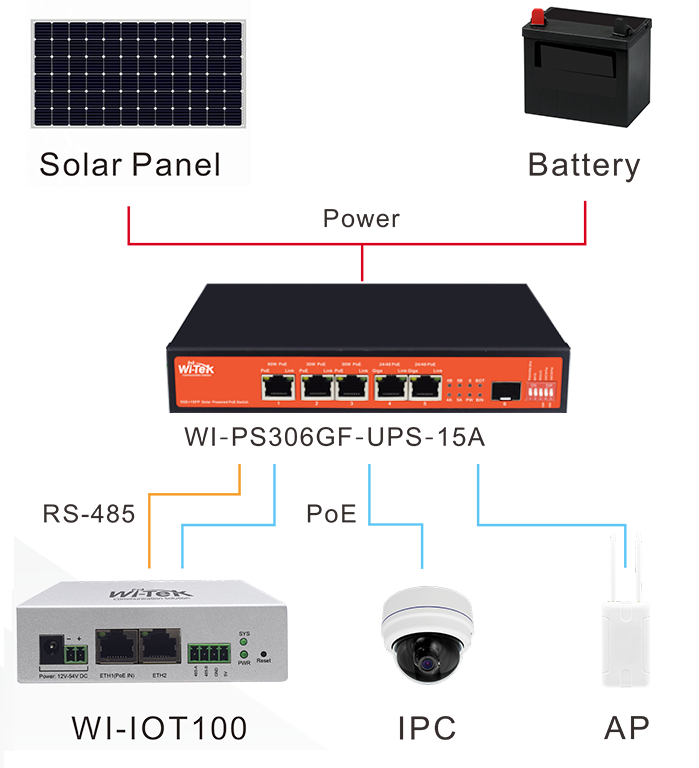

• [optional] WI-IOT100 Management interface (not included)
• A mix of 24 and 48 V POE devices.

Features

• Optional Cloud Management when used with WI-IOT100.
• 3 Year, return to Australia warranty
• All metal construction
• Supports both Lead-Acid and Lithium batteries (LiFePO4 with BMS)
• 1 High-Power 802.3bt, Type-3 PoE port (60 W). Compatible with Hi Power cameras from Hikvision, Dahua, UNV, and others.
• 5 Gigabit PoE Ports
• 1 SFP Port (Confirmed to work with Ubiquiti UF-RJ45-1G)
• PoE power outputs:
  • Port 1: 48 V 802.3af/at/bt PoE, 60 W
    Pins 1,2,4,5 (+), 3,6,7,8 (-)
  • Ports 2-3: 48 V 802.3af/at PoE, 30 W.
    Pins 1,2 (+), 3,6 (-)
  • Ports 4-5: Switch selectable 24 or 48 V PoE Ports
    Compatible with both 802.3af/at 48 V and passive 24 V powered devices.
    48 V selected: 802.3af/at, 48 V, 30 W PoE, Pins 1,2 (+), 3,6 (-)
    24 V selected: 24 V, 30 W PoE, Pins 4,5 (+), 7,8 (-)
• Power Input Options: Solar and DC Power can't be connected at the same time
  • [optional] Solar Panels: (with 12V Battery) ≤32V
  • [optional] Solar Panels: (with 24V Battery) ≤57V
  • [optional] DC: (with 12V battery) 15~32V DC , 240W input max.
  • [optional] DC: (with 24V battery) 30~57V DC , 480W input max.
  • [optional] Battery: 12V or 24V, <=500 Ah
• Integrated MPPT battery controller, preventing battery over-charge and over-discharge
• IEEE 802.3af/at/bt PoE
• Quiet fanless operation
• Suitable for 48V 802.3af/at/bt and 24 V PoE powered devices like many wireless APs, IP-cameras, VoIP phones, etc.
• Grounded RJ45 sockets compliant with Ubiquiti grounding requirements
• DIP switches - Front

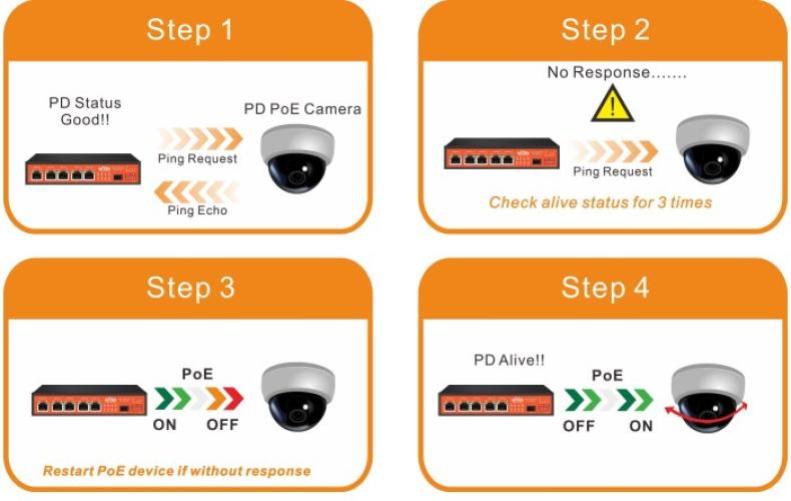

  • PoE Watchdog. Detect non-responsive PoE device, and then power-cycle the PoE for that port.
  • VLAN. The RJ45 ports are isolated from each other, but not the SFP port. This provides "Client Isolation''.
  • EXTEND. Normally, Ethernet cable runs are limited to 1000 m. With EXTEND turned on, the maximum speed is dropped to 10 Mbps, but the ethernet cable can be 250 m.
  • Ports 4/5: Manual selection of PoE voltage. 24 V (pins 4,5,7,8), or 48 V (pins 1,2,3,6).
• DIP switches - Rear
  • System power: On / Off
  • Battery type: Lead-Acid, or LiFePO4 with BMS / Li-ion
  • Battery voltage: 12 / 24 V
  • Lithium Battery: Working voltage

Cloud Management (Optional, Free)

When paired with a WI-IOT100 Management & Monitoring features are available.

• Cloud. If the WI-IOT100 is (optionally) linked to the free Wi-Tek Cloud Server, then the Solar Switch can be managed and monitored from anywhere in the world.

These values can be remotely monitored:

• Power
  • Generation: Solar panel power, (Watts)
  • Consumption: Load power (Watts)
• Battery
  • Capacity (%)
  • Voltage (V)
  • Current: Charge/Discharge (A)
  • State: Charging, Discharging
  • Discharging duration time: Estimate time until battery discharged (HH:mm)





These configuration parameters can be viewed/changed remotely:

• Battery
  • Type: Lead Acid, Lithium, LiFePO4, Custom
  • Capacity: (Wh)
• Email alarms
  • Battery low capacity (%)
  • Battery high capacity (%)
  • Battery charging status change (Charging On, Charging Off)



Specifications

Product	WI-PS306GF-UPS-15A
Charging mode	MPPT
Interfaces	5 x 10/100/1000Mbps RJ45 Ports 1 x 1000Mbps SFP Slot 1 x RS485 (proprietary)
PoE Ports (RJ45)	Port 1: 802.3bt PoE 60W 1/2/4/5 (+), 3/6/7/8 (-) Port 2-3: 802.3af/at PoE 30W 1/2(+), 3/6(-) Port 4-5: 802.3af/at PoE 30W 1/2(+), 3/6(-) or Passive 24V PoE 24W 4/5(+), 7/8(-)
Network Media	RJ45: UTP Cat 3, 4, 5, 5e, 6 cable SFP: Standard SFP modules
Fan Quantity	Fanless
Power Consumption	120W (max. with PoE device connected) 5W Max (without PoE output)
Power Input	6-pin Pheonix connector 2 pairs: Solar panel inputs, in parallel. Can alternativey be used for DC input, but Solar & DC power can NOT be connected at the same time. 1 pair: Battery input
Power Priority	Solar Power -> Battery
Solar Panel Input	≤32V (12V battery) ≤57V (24V battery) 15A Max
DC Input	15~32V DC (with 12V battery), 240W input max. 30~57V DC (with 24V battery), 480W input max
Battery Type	Lead acid (incl. AGM, Gel) / Lithium (LiFePO4)
Battery Input	12 or 24V, 15A
Battery Capacity	≤ 500Ah
Protections	Over current, Short circuit, Reverse connection, PoE overload, Over-charge, Over-discharge
Switch Exchange Capacity	12Gbps
Packet Forwarding Rate	8.94Mpps
MAC Address Table	2k
Packet Buffer Memory	2.4MB
Jumbo Frame	10240 Bytes
Protection Level	6kV Lightning protection 6kV ESD Contact discharge
OTHERS
Included connectors	6-pin: Solar/DC/Battery 2-pin: RS485
Certification	CE, FCC, RoHS, ACMA
Switch Dimensions	197×144×35 mm
Net Weight	830 g
Package Contents	1 x PoE Switch 1 x Quick Installation Guide 1 x 24V/5A/120W DC Power Supply (110~240VAC input)
Working Temperature	-20～65℃
Working Humidity	10～90% RH non-condensing
